You’re on the last slide of a high-stakes presentation when your laptop freezes, fans roaring like a tricycle on an uphill climb. The loading spinner twirls, you mutter a prayer, and—nothing. Ever catch yourself thinking, “If this machine had just a little more breathing room, my blood pressure would stay normal”? Good news: In many cases, that extra oomph is only a screwdriver away.
Upgrading a laptop’s RAM and storage in 2025 isn’t sorcery—it’s equal parts curiosity, caution, and good lighting. Grab a mug of kapeng barako, clear a desk, and let’s give your trusty device a fresh lease on life.
Editor
Lloyd Kelly Miralles chevron_right
Table of Contents
9 Things To Know Before Upgrading Your Laptop
1. First, know thy laptop (and its limits)
- Model detective work – Flip your machine over and find the exact model code (usually tiny gray text). A quick web search for that code plus “service manual” tells you:
- Whether the RAM is socketed (SO-DIMM) or soldered (LPDDR5/LPDDR5X).
- How many M.2 or 2.5-inch drive bays do you have?
- Maximum supported capacities.
- Warranty whispers – Some brands allow user upgrades without voiding coverage, others seal the chassis with warranty stickers. If in doubt, call the service hotline before you pop a screw.
- BIOS version check – Updating the BIOS first often unlocks support for higher-density modules or newer PCIe standards. Do this before any physical surgery.
Quick reality bite: Ultralights with LPDDR5X memory (think 13-inch MacBooks or premium Windows “Copilot+” laptops) have RAM soldered for power efficiency. No amount of wishful thinking—or magic spudger—can upgrade those chips. Storage, however, is still replaceable on many models.
2. RAM 101 — capacity, speed, and channels
Capacity: How much is enough in 2025?
- 8 GB – Bare minimum for casual browsing, Netflix, and word processing.
- 16 GB – Sweet spot for students, office multitaskers, and light photo editing.
- 32 GB & up – Video editors, 3D artists, devs running VMs, and gamers with multiple AAA titles open.
Speed: DDR4 vs. DDR5 vs. LPDDR5X
- Desktop replacements and mid-range laptops still ship with DDR4-3200 SO-DIMMs—cheap and plentiful in Gilmore IT Center bins.
- Newer machines jump to DDR5-5600 or 6400; modules cost more but future-proof bandwidth-hungry apps.
- LPDDR5/5X is soldered; you can’t swap it, but knowing whether yours is 16 GB or 24 GB tells you if an upgrade path exists (spoiler: usually storage only).
Dual-channel matters
Performance isn’t just capacity; two identical sticks working in tandem (dual-channel) feed the CPU twice as wide a pipe. Mix-and-match sizes and the system may fall back to single-channel, throttling graphics performance by as much as 25 %.
3. Storage 101 — from spinning rust to PCIe 5 rockets
|
Interface |
Common sizes in 2025 |
Typical speed |
Upgrade notes |
|
2.5-inch SATA SSD |
240 GB–2 TB |
up to 550 MB/s |
Still a lifesaver for budget laptops that shipped with spinning HDDs. |
|
M.2 SATA |
240 GB–1 TB |
≈550 MB/s |
Uses same connector as NVMe; check your laptop’s spec sheet to avoid surprises. |
|
M.2 NVMe PCIe 3.0 x4 |
256 GB–4 TB |
1.5–3.5 GB/s |
Bread-and-butter upgrade; sweet spot for cost vs. speed. |
|
M.2 NVMe PCIe 4.0 x4 |
500 GB–8 TB |
5–7 GB/s |
Mainstream in mid-2025; most recent Ryzen/Intel laptops support it. |
|
M.2 NVMe PCIe 5.0 x4 |
1 TB–4 TB |
10–12 GB/s |
Early-adopter territory—amazing for 8K video workflows, overkill for spreadsheets. |
Side note: Some gaming laptops include a second bare M.2 slot—an easy way to slap in a high-capacity drive without touching the factory OS.
4. Shopping checklist (and where to buy)
- SO-DIMM RAM – Check voltage and speed match your system (e.g., DDR5-5600 1.1 V).
- NVMe or SATA SSD – Match keying (B-key, M-key, or B+M) and length (2280 is most common).
- Precision screwdriver set – At least PH000 and Torx size T5/T6 bits.
- Plastic spudger or old guitar pick – For prying without scratching aluminum.
- Anti-static wrist strap – Quezon City may be humid, but static still zaps chips.
- Thermal pads/heatsinks – Optional for PCIe 4/5 drives; prevents throttling in tropical temps.
Where to shop? Gilmore, SM North’s Cyberzone, or legit Shopee/Lazada sellers with high ratings. Avoid “white-label” SSDs with no DRAM cache—they slow down once the SLC buffer fills.

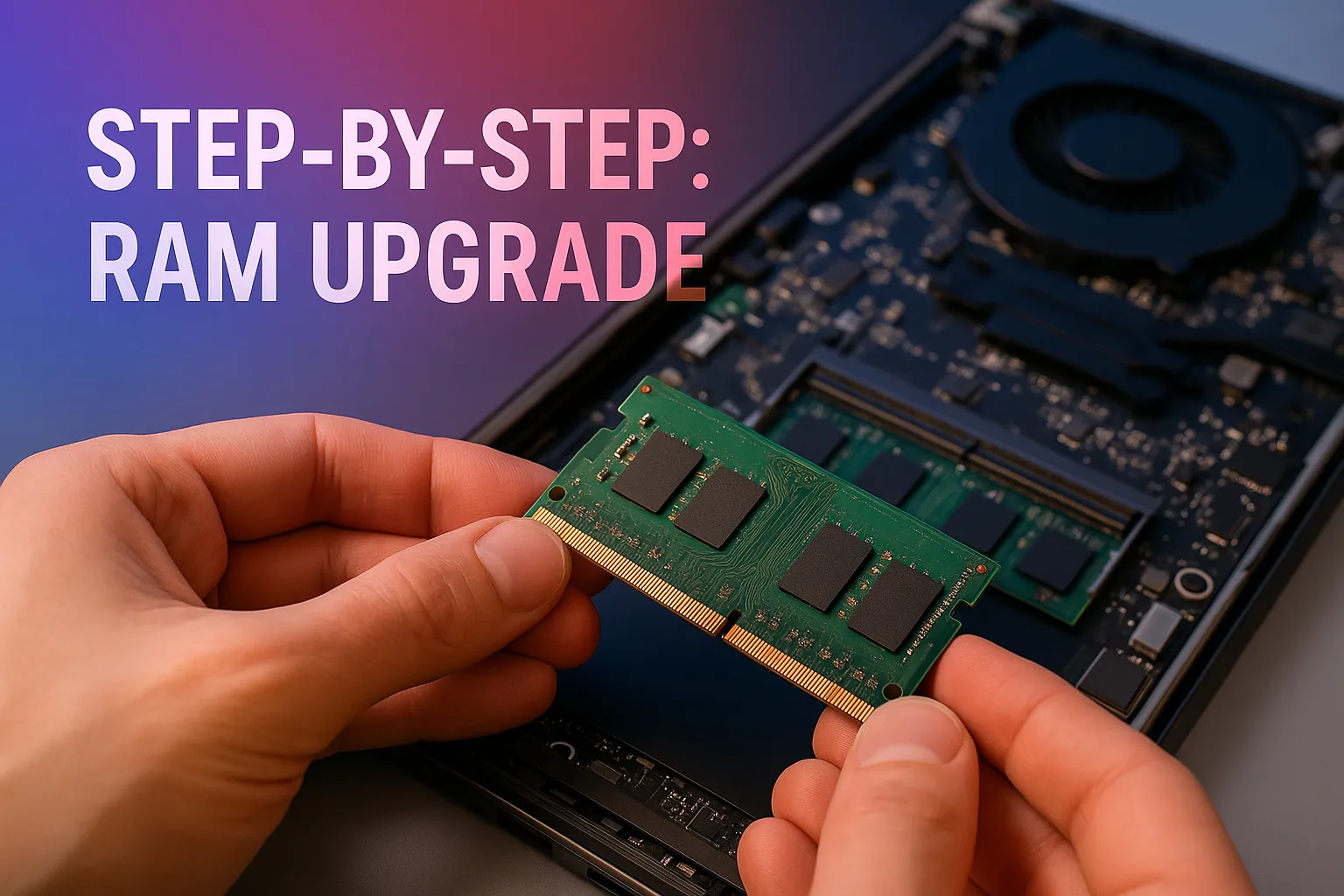

5. Step-by-step: RAM upgrade
- Shut down the laptop completely, disconnect the charger, and hold the power button for 10 seconds to discharge.
- Remove the base cover. Keep screws in order—some are different lengths; mixing them can dent the palm rest.
- Locate SO-DIMM slots. Unlock side clips; the module pops up at a 30-degree angle.
- Insert the new stick at the same angle, gold contacts first, until the notch lines up.
- Press gently downward until the clips snap. Avoid touching the chips; grip by the edges.
- Reassemble, boot into BIOS, and confirm capacity and dual-channel status.
Trouble? If it beeps or refuses to boot, reseat modules, test one stick at a time, or clear CMOS via the tiny battery or dedicated pinhole.
6. Step-by-step: Storage upgrade/cloning
Option A – fresh install (clean slate)
- Back up personal files to an external drive or cloud.
- Unscrew base, locate the M.2 slot, and remove the single retaining screw.
- Slide out old SSD, insert new one at an angle, press flat, and replace screw.
- Close chassis, boot from USB installer (Windows 11, Fedora, macOS Recovery for Mac-like clones), and reinstall OS.
- Restore data.
Option B – clone and swap (keep your setup)
- Connect the new SSD via USB-to-NVMe enclosure.
- Use cloning software (Macrium Reflect, Clonezilla) to copy the disk bit-for-bit.
- Shut down, swap drives as in steps 2-3 above.
- Boot; the system should feel identical, but faster.
Pro tip: After cloning, expand the primary partition in Disk Management (Windows) or Disk Utility (macOS) to reclaim unused space.
7. Post-upgrade sanity checks
- Run memory diagnostics (Windows Memory Diagnostic or MemTest86). Errors? Return faulty stick within the shop’s seven-day replacement window.
- CrystalDiskMark or Blackmagic Disk Speed Test – Confirm your shiny new PCIe 4.0 SSD is actually pushing the advertised 7 GB/s, not stuck in PCIe 3.0 mode due to a wrong BIOS setting.
- Observe temps with HWInfo or macOS iStat Menus; NVMe drives north of 80 °C throttle. Stick on a low-profile heatsink if necessary.
8. Troubleshooting corner
|
Symptom |
Likely culprit |
Quick fix |
|
Laptop powers on, no display, beeps in repeating pattern |
RAM not fully seated |
Pull modules, re-insert firmly until clips click. |
|
New SSD is invisible in BIOS |
Wrong interface or disabled slot |
Check if you bought a SATA-only SSD for an NVMe-only slot; toggle “NVMe” vs. “AHCI” in BIOS. |
|
Boots, but Windows crashes |
Mixed RAM timings |
Use identical brand/speed modules or enable “XMP/EXPO” profile if supported. |
|
SSD speed capped at ~3 GB/s |
PCIe lane limited |
Some slim laptops restrict the secondary slot to PCIe 3.0—use the primary slot or live with half speed. |
9. Future-proofing tips in 2025
- Buy bigger than today’s need – Storage fills up at the speed of 8K Instagram Reels.
- Check for modular designs – Framework, Lenovo ThinkBook 16p Gen5, and select Dell Latitudes now ship with swappable daughter cards for I/O—worth paying the premium if you plan long-term ownership.
- Plan around AI workloads – Local language models munch RAM. If you dabble in on-device AI (Windows Copilot Studio, Apple ML samples), 32 GB is the new 16 GB.
- Keep the old drive as a pocket backup—enclosures cost less than a Jollibee bucket meal.
Conclusion
See? With a steady hand and a dash of curiosity, you’ve just extended your laptop’s life by years, saving cash, reducing e-waste, and dodging the great global chip-shortage roller-coaster (again).
